Standard CAD Formats Processing

Complex shaped models created by CAD software can be imported into EMC Studio. EMC Studio supports the following CAD data file formats:

• SAT (*.sat) - ACIS geometry solid model files
• IGES (*.igs) - Industry standard Initial Graphics Exchange Specification (IGES) files
• STEP (*.stp, *.step) - Standard for the Exchange of Product Model Data (STEP) files
• CATIA V4 (*.model) - CATIA V4 files
• CATIA V5 (*.CATPart) - CATIA V5 files

Advanced CAD and Meshing Functions

• Boolean operations (union, regularized union, intersect, subtract) for complex models
• Transformation operations (translate, rotate, mirror, scale) on CAD models
• Multiple transformation operations
• Advanced tools for automotive glass antenna construction
• Removal of faces in complex models
• Assignment of different meshing size to edges and faces
• Meshing of CAD model considering meshing sizes
• ReMesh functionality

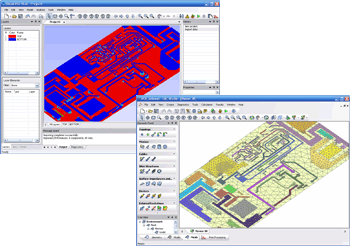

PCB Data Processing

Complex PCB data can be imported into EMC Studio using EMCoS PCB VLab as ODB++ file. This approach is intended to include PCB topological information into the whole simulation model with car body, antenna and harnessing consideration.
