Parabolic Reflector

Model Description

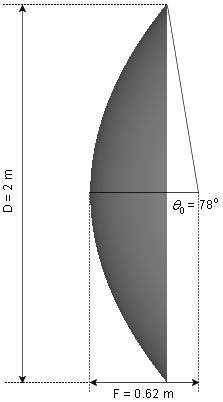

In this example parabolic refector illuminated by an electric dipole is considered. Electric dipole is placed at the reflector focus. Reflector dimensions are the following: diameter - 2 m, focus - 0.62 m and subtended angle - 78 deg. Frequency is 1.2 GHz. Geometry is imported into EMC Studio from ACIS SAT file format.

Simulation Results

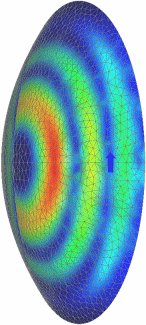

Current Distribution (1.2 GHz)

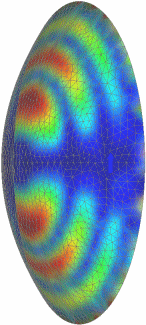

Charge Distribution (1.2 GHz)





3D Far Field Pattern (1.2 GHz)
