Coaxial Cable in TEM-Cell

Model Description

In this example TEM cell of 50 Ohm characteristic impedance and coaxial cable (inner radius = 0.3 mm, outer radius = 1.5 mm) are considered. The septum of the TEM cell is terminated with 50 Ohm on right side and Port on left side. Frequency range: 10 MHz – 300 MHz.

exam12_1_tem_cell

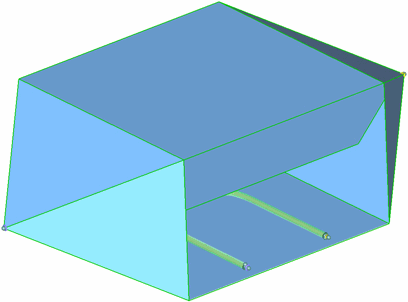

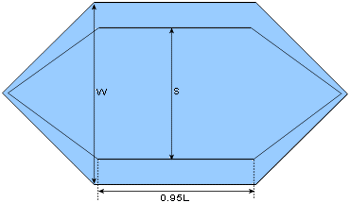

TEM Cell Top View

exam12_2_tem_cell_dimensions_1

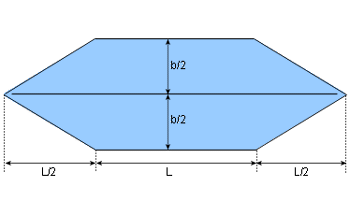

TEM Cell Side View

exam12_3_tem_cell_dimensions_2


Simulation Results

Reflection Coefficient (S11)

exam12_4_tem_cell_s11

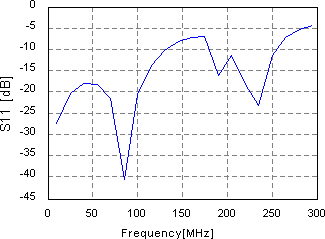

Transmission Coefficient (S12)

exam12_5_tem_cell_s12
