Cross Talk between Cables in Car Body

Model Description

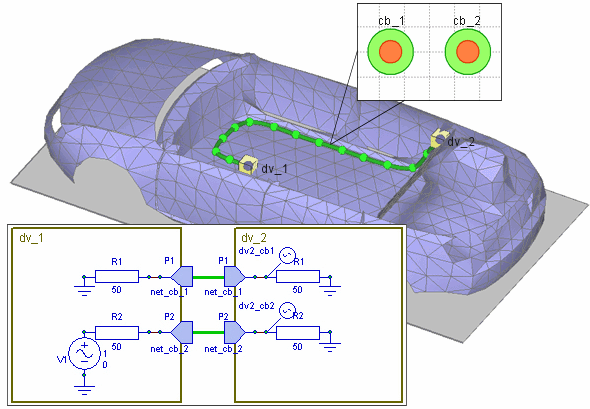

This example demonstrates XTalk analysis between two single cables terminated with simple devices in a car body. Cables paremeters are the following: core radius – 0.0006 m, insulation thickness – 0.0006 m, conductivity values – 5.76e 007 S/m, insulation material permittivity value – 2.3, distance between cables – 0.004 m, cables length – 3 m.

exam6_1_cross_talk_between_cables_in_car


Simulation Results

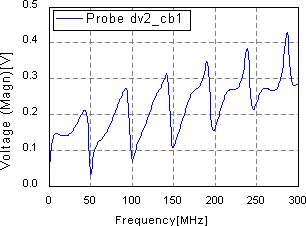

Voltage at Cable 1 Far End

exam6_2_cross_talk_voltage_in_far_end_1

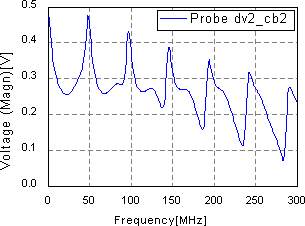

Voltage at Cable 2 Far End

exam6_3_cross_talk_voltage_in_far_end_2
