Half Wavelength Dipole

Model Description

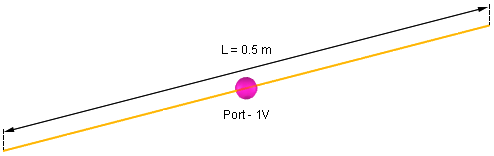

In this example half wavelength dipole (length = 0.5) is considered. Half wavelength dipole – aligned with the x axis – with voltage gap source on the centre segment. Frequency range: 200 MHz – 400 MHz. Solution is obtained by Method of Moments (MoM) in EM Analysis Type.

exam1_1_half_wavelenght_dipole


Simulation Results

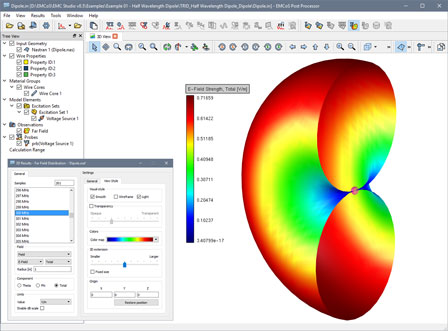

3D Far Field Pattern (300 MHz)

exam1_2_half_wavelenght_dipole_far_field_pattern

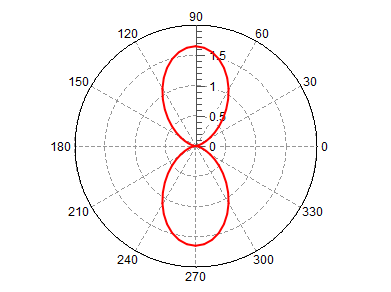

Dipole Gain (300 MHz)

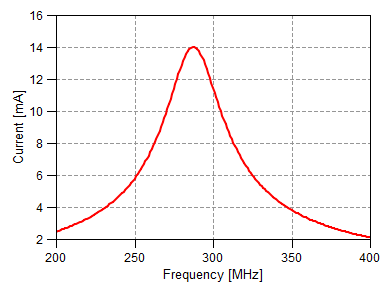

Current in Antenna Port
