Horn Antenna with Feed Power Specification

Model Description

In this example horn antenna is fed by voltage source with source power 1000 W. This is a model AT4000 with frequency range from 200 MHz to 1000 MHz. Solution is obtained by Method of Moments (MoM) in EM Analysis Type.

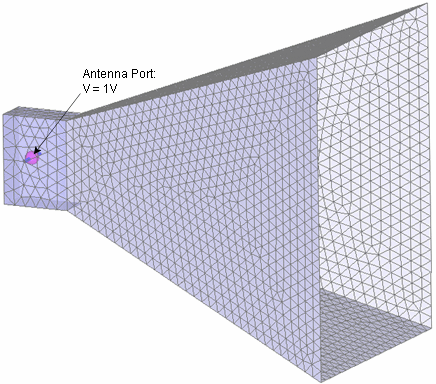

exam18_1_horn_antenna



Top View

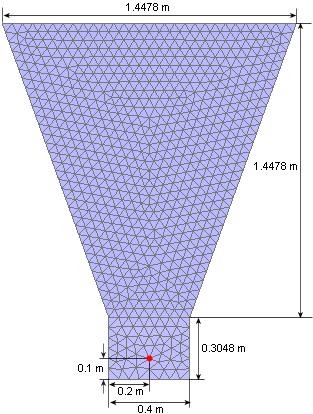

exam18_2_horn_antenna_dimensions_1

Side View

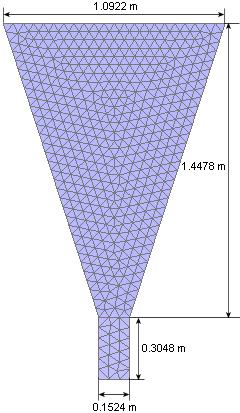

exam18_3_horn_antenna_dimensions_2


Simulation Results

3D Far Field Pattern (400 MHz)

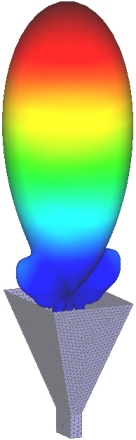

exam18_4_horn_antenna_far_field

Total Electric Field (400 MHz)

exam18_5_horn_antenna_near_field
