Rod Antenna on Car Body

Model Description

This example considers S11 parameter and far fields calculation of rod antenna located on the roof of car body. Solution is obtained by Method of Moments (MoM) in EM Analysis Type. Antenna length is 0.75 m and frequency range is 80 – 120 MHz.


Simulation Results

Total Electric Field (80 MHz)

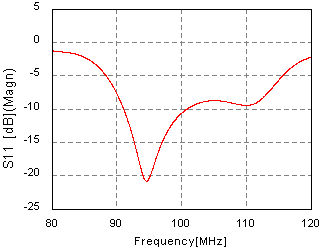

Reflection Coefficient (S11)


3D Far Field Pattern (80 MHz)

exam5_4_rod_antenna_on_car_far_field_pattern

Current Distribution (95 MHz)

exam5_5_rod_antenna_on_car_current_distribution
