Industrial Electronics EMC

EMCoS Studio is widely used in a solution of modern industrial electronics EMC problems.

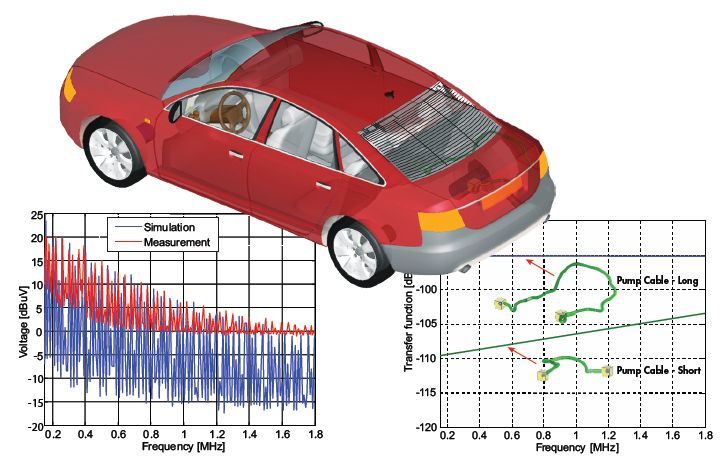

Influence of Fuel Pump Cable on AM Antenna



  • Fuel pump cables of different configurations
  • Minimization of coupling between cables and AM antenna
  • Very good matching between measurements and simulations results

Results were obtained under common project with AUDI AG, Germany

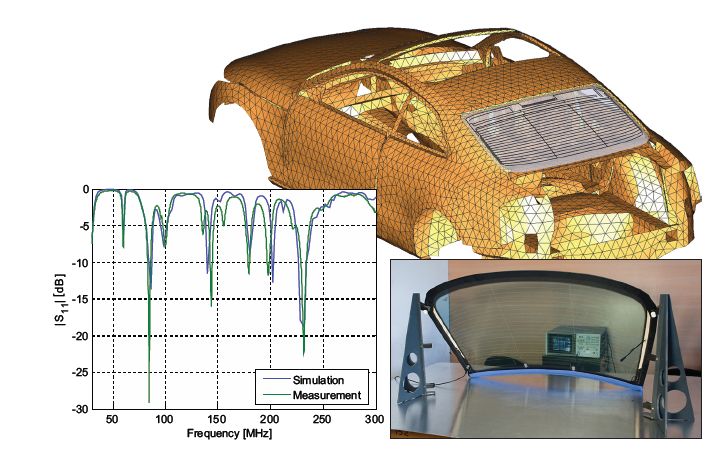

Automotive Glass Antenna Simulations



  • Import and processing of complex glass antenna models from CAD
  • Special Green function method for glass antenna analysis
  • Validation of simulation results with measurements

Results were obtained under common project with AUDI AG, Germany

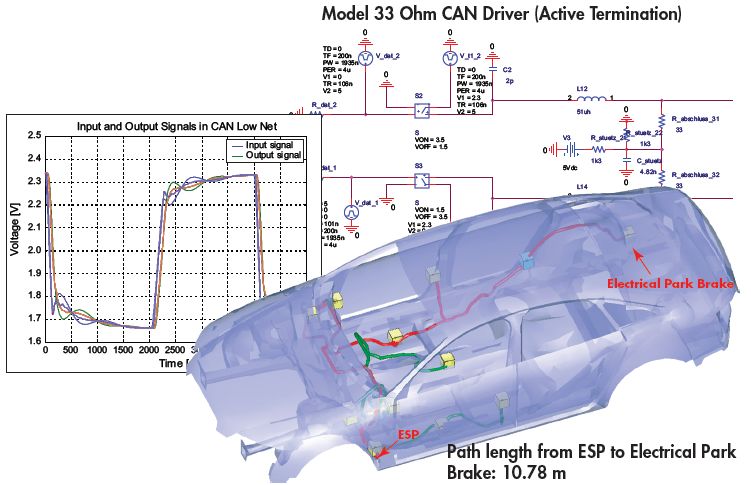

Simulation of CAN System





  • Cross Talk and Sl in CAN systems
  • Modeling of multiplexed wiring systems
  • Modeling of complex CAN devices
  • Time domain analysis

Automotive_simulation_of_CAN_System

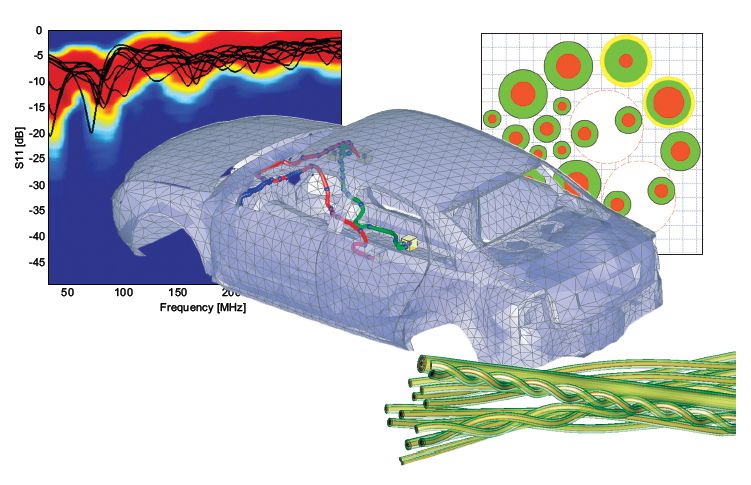

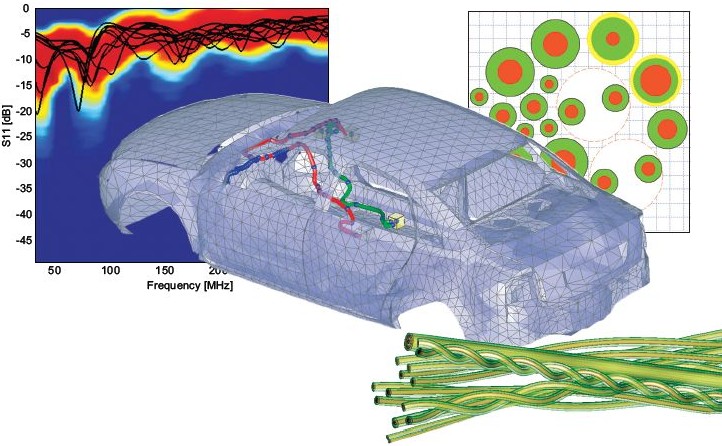

Analysis of Random Multi Cable Bundle

  • Radiated emission from industrially produced cables
  • Model of random cross-sections of stochastic bundle
  • User-defined stochasticity level

Automotive_Analysis_of_Random_Multi_Cable_Bundle_4
